SLA 250 LASER UPGRADE

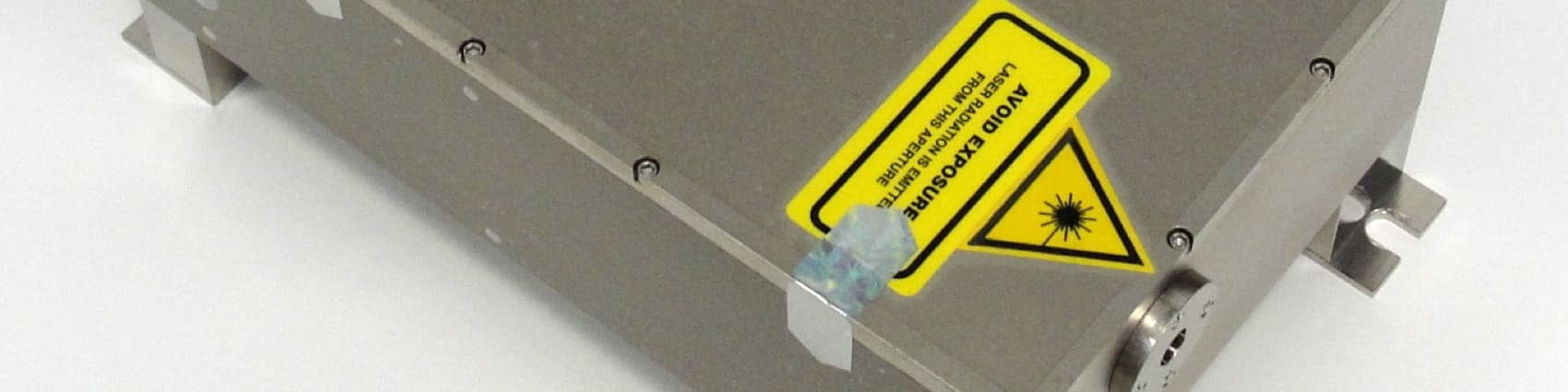

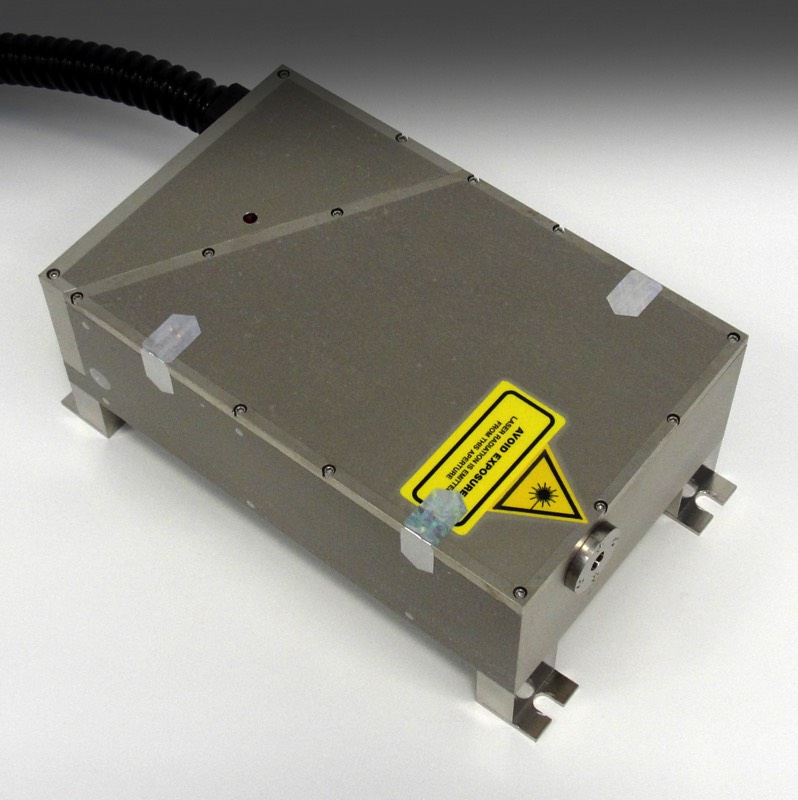

SLA 250 Laser Head

Replaces old generation HeCd Gas lasers. It involves minimal hardware changes, cooling plate, cables. Automatic on/off functions. Transparent use for the operator.
Field tested, CE Approved.

THE ADVANTAGES

QuickCast

The A-Wave series allow the use of latest materials developed for Solid State Lasers like Somos® Watershed 11122 XC , Somos® ProtoGen , Somos® NeXt , Somos®NanoTool etc. It gives a new life to the SLA 250 system. It uses a patented method of wavelength conversion.

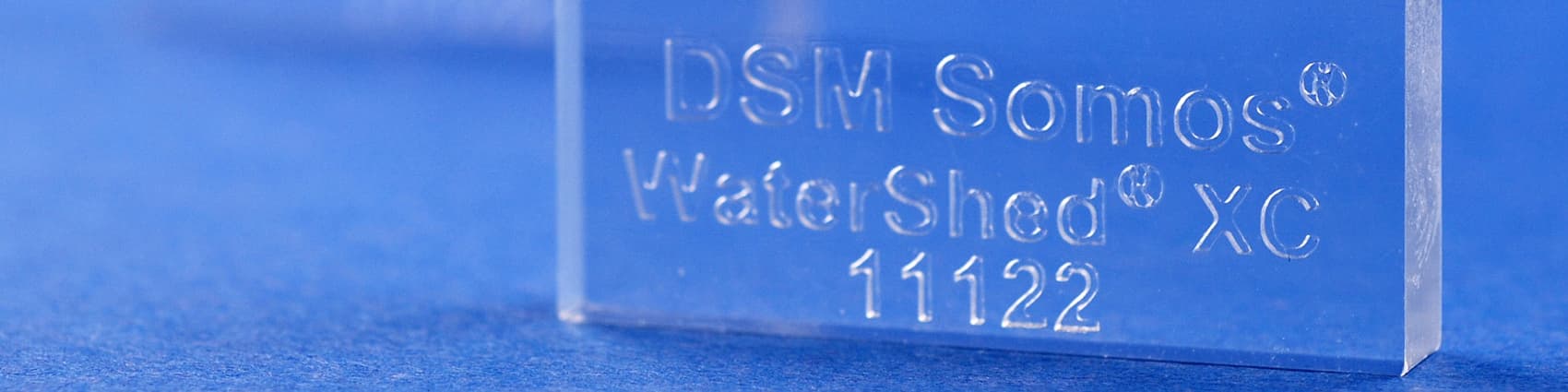

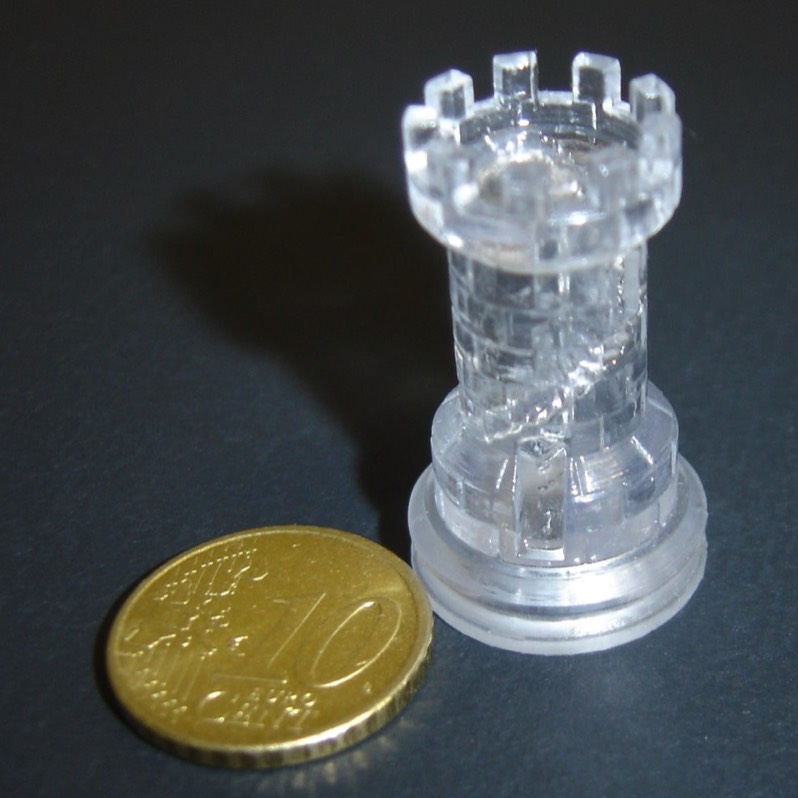

WaterShed 11122XC Chess Rook

It reduces system downtime thanks to its high quality components. The effective VAT power is up to 70 mW, adjustable depending by the processed material. Improves system resolution down to 0,10 mm without optics replacement. Excellent beam quality and power stability and excellent surface quality.

EASY INTEGRATION

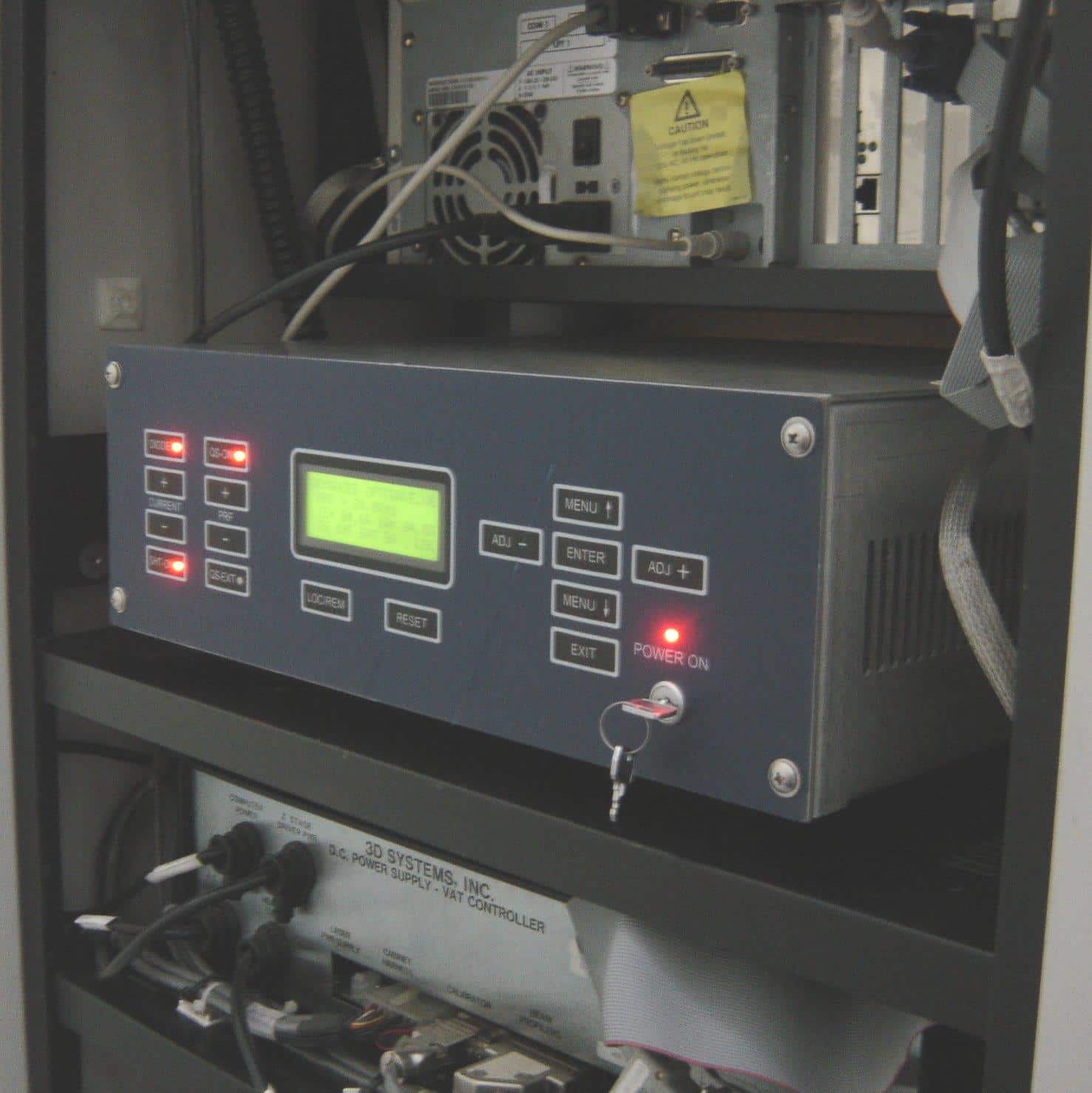

SLA 250 Power Supply

Installs in one day with minimal hardware changes.No need for replacement of the optics. Integrates into the system without external components thanks to its compact design. No need for cooling chiller or additional external units.
Field-replaceable diode. Laser head in sealed unit.

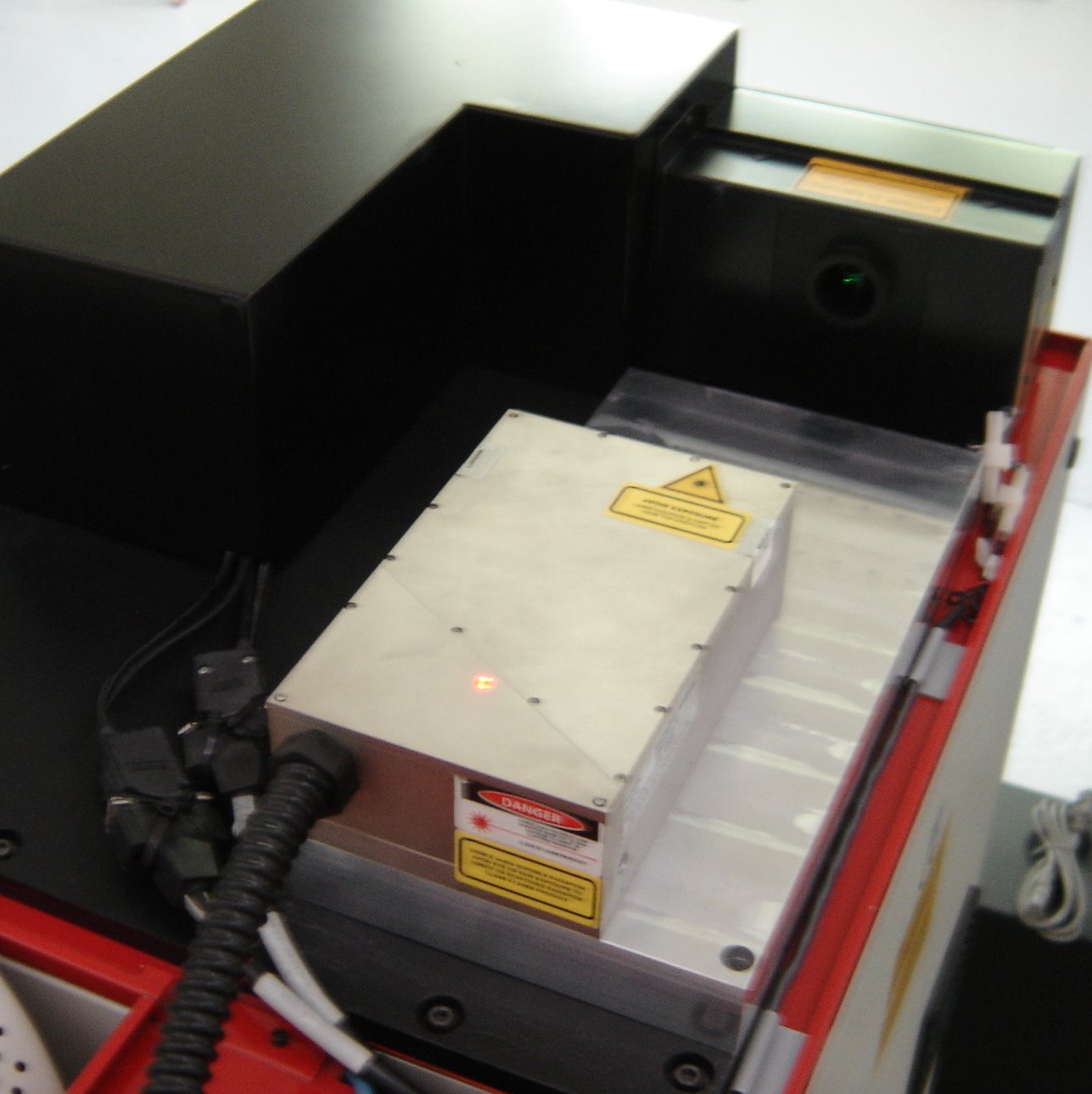

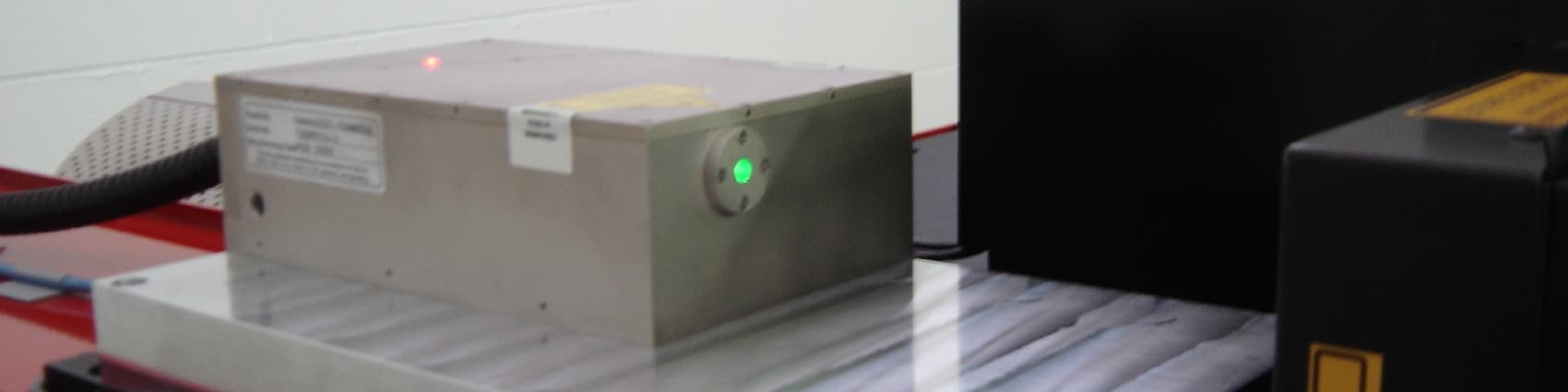

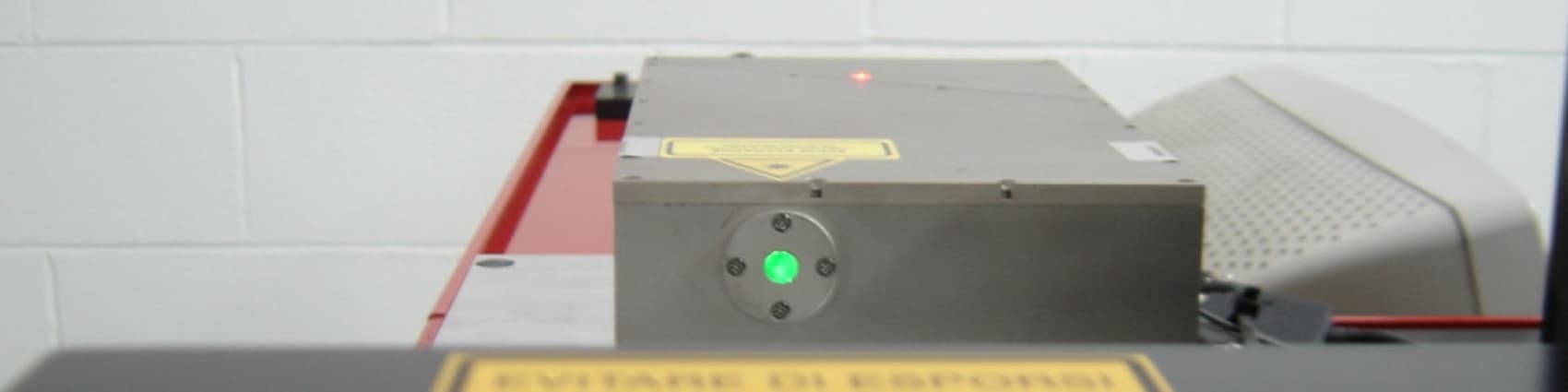

SLA 250 Laser Head

Requires no changes to processing styles or parameters. Fully tested on materials. Does not alter the properties of the vat or special products.Lower consumption, lower heat, air-cooled, easy to maintain.Switching on and off are managed by the software, as is processing power according to the material.

TECHNICAL SPECIFICATIONS



SPECS

Potenza
Diametro Fascio
Garanzia
Durata tipica
Estensione garanzia
Materiali

HECD

40 mW
0,20 mm
1 anno/2.500 hrs
3.000/3.500 hrs
No
Limitati

A-WAVE

70 mW
0,10 mm
1 anno
> 10.000 hrs
+2 anni
Tutti


ECONOMIC BENEFITS

More productivity, especially for ceramic filled materials.


Longer life. HeCd lasers are guaranteed for 2500 hours with a typical duration of 3000/3500 hours.


A-Wave comes with a one year warranty at unlimited hours. The solid-state lasers generally have a duration of >10,000 hours.


Under a special contract, is possible to extend the warranty up to an additional two years. Lower cost of spare parts. Reduced number of maintenance visits.

A-WAVE UV LASER

A-Wave UV/355 nm series lasers by Advanced Optowave Corporation are designed for 24/7 production environments. Their reliability is demonstrated by the many installations in industrial sectors such as electronics, PCB manufacturing and solar panels.
