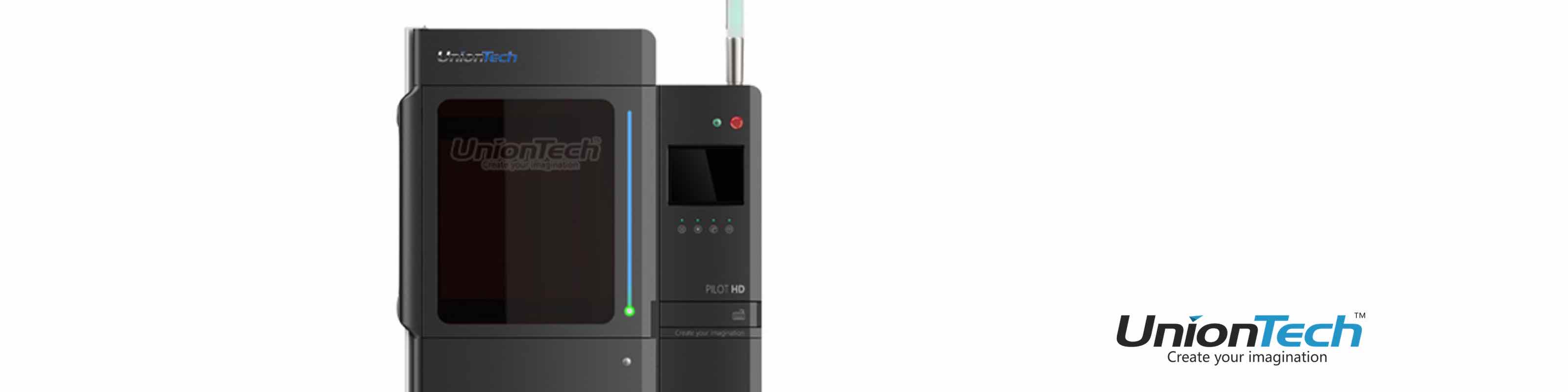

PILOT

THE ENTRY LEVEL
WITH HIGH TECHNOLOGY
My Image

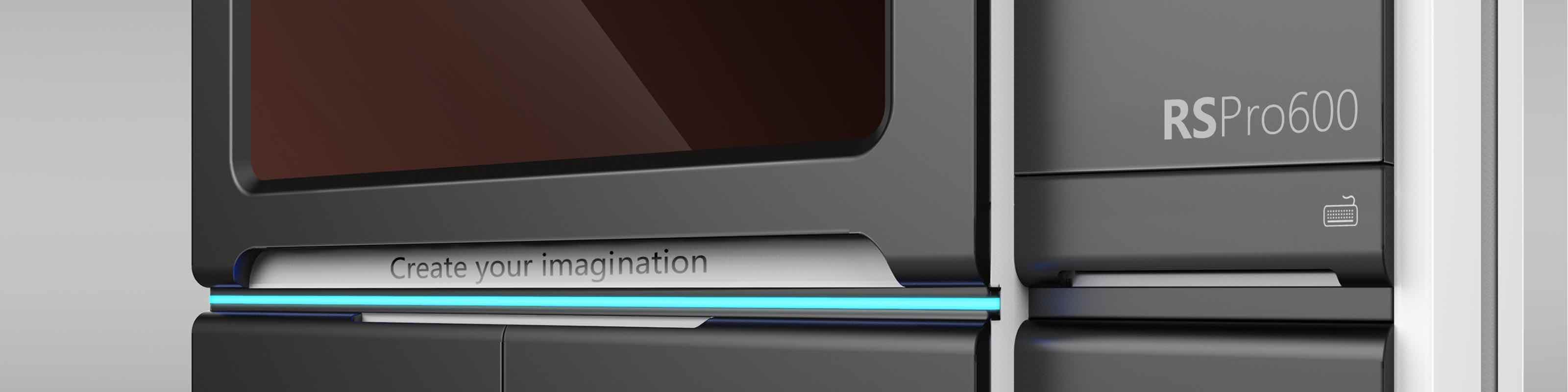

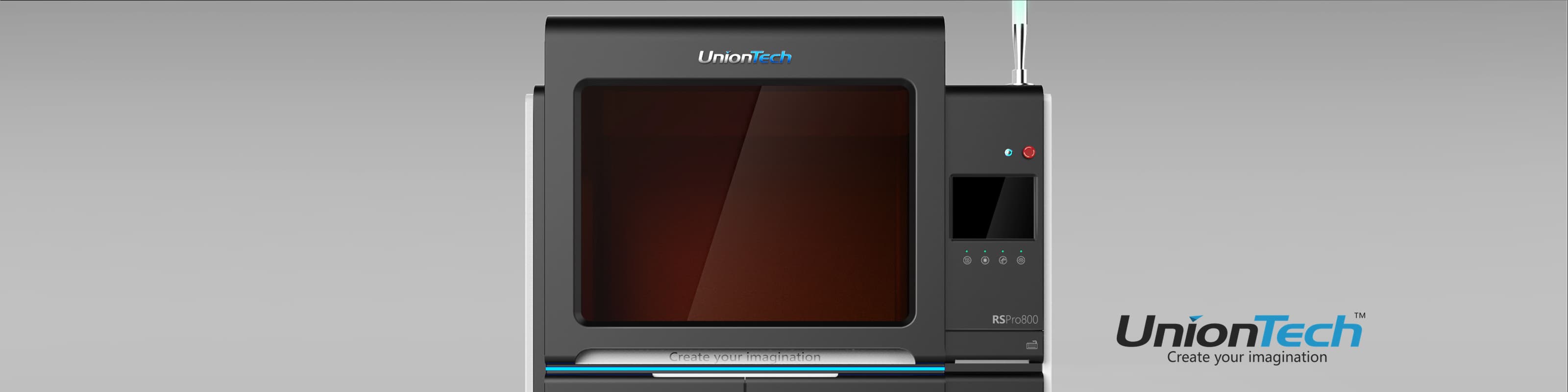

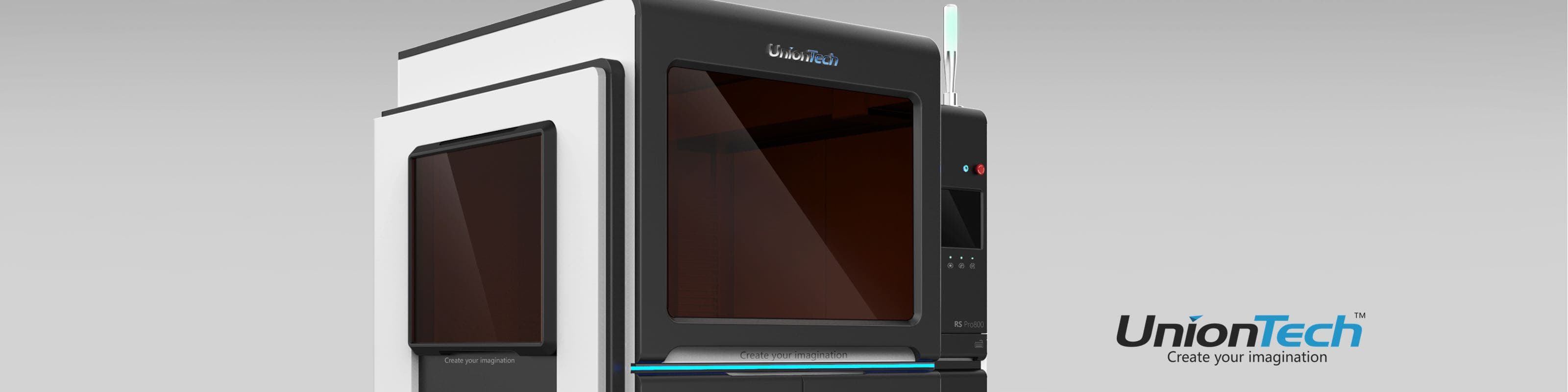

RSPRO

A COMPLETE RANGE OF SYSTEMS FOR INDUSTRIAL PRODUCTION
My Image

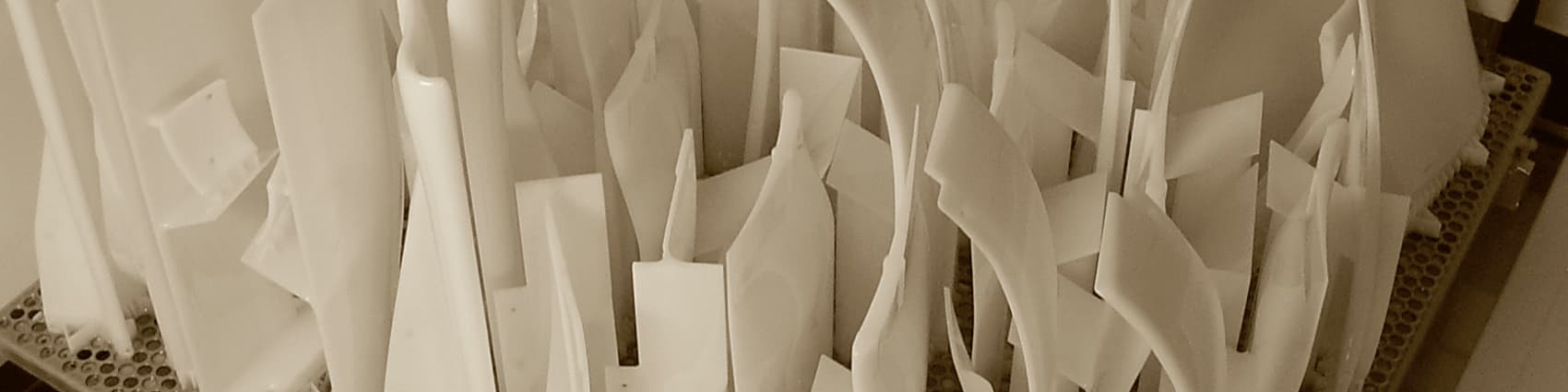

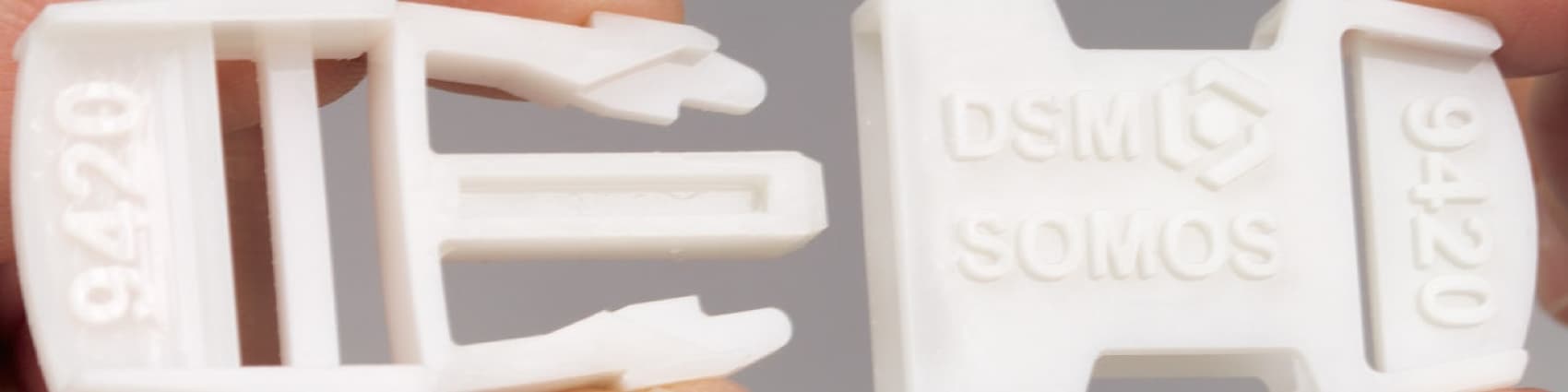

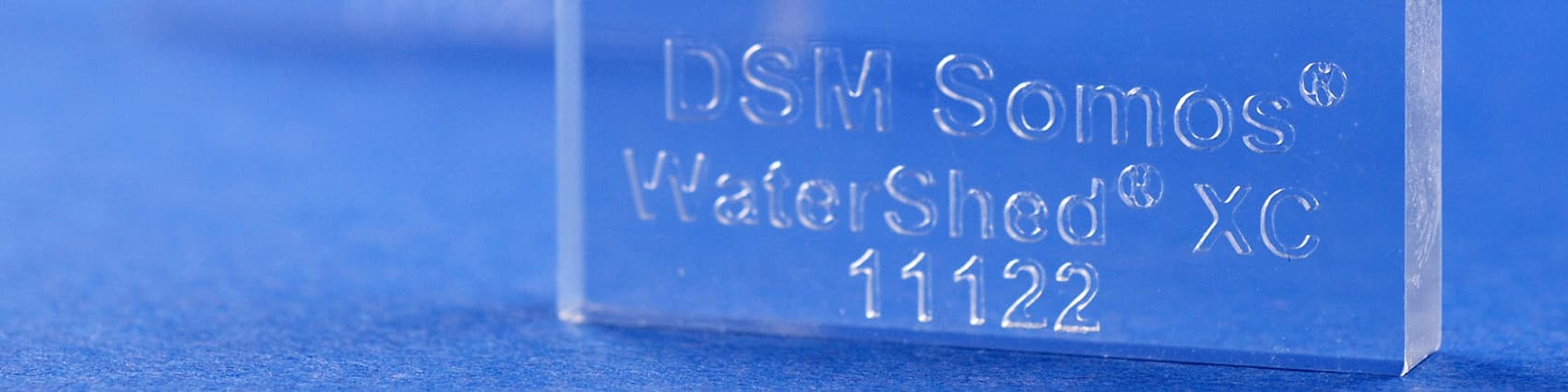

COVESTRO

THE MOST ADVANCED MATERIALS FOR STEREOLITHOGRAPHY SYSTEMS
My Image

Founded in 2000 as Shanghai Union Technology Co. Ltd, Uniontech was one of the pioneers in the development of SLA technology in its area.
Thanks to the constant work in research and development and adoption of an open platform, Uniontech with over 5000 installed systems is the industry leader in Asia. Recently, the Shanghai head office is supported by the subsidiary in Germany through partnering with distributors all over Europe. Export is accomplished in over 40 country around the world.


My Image

STEREOLITHOGRAPHY - SLA

The SLA or Stereolithography technology, consists in the polymerization, layer after layer, of a photosensitive resin through the use of a UV laser and the scanning mirrors.
Is the most established and reliable technology on the market, having been the first to be developed between all of the 3D printing techniques.


HIGH QUALITY COMPONENTS

For the components of its systems Uniontech use proven quality manufacturers and with high reliability. The lasers used are by the U.S. company Spectra Physics , scanners by German Scanlab and the Japanese PLC Panasonic . Magics of Materialise or Polydevs by Uniontech is used for the preparation of models and printing.

LOCAL TECHNICAL SUPPORT

Thanks to local distributors with proven experience as Key Service, the Uniontech systems are supported in a professional manner and in line with response times expected by customers. The local stock of spare parts also ensures a ready answer for any service need.

HIGH PRODUCTION VOLUMES

With a range of products from small tas the Pilot SD to the larger RSPro series, Uniontech offers a line of systems able to meet the higher production volumes.

LOW OPERATING COSTS

The open configuration of materials and the efficiency of the systems, combined to their reliability offers the lowest operating costs in the market.

READY FOR INDUSTRY 4.0

Uniontech systems, are equipped with proprietary RS Con software, allow remote communication, interfacing with company databases for reporting, remote production planning on multiple systems, remote diagnostics and management.
RS Con also allows the modification of the build parameters during the printing operation.

PREMIUM MATERIALS

Thanks to the strong partnership with Covestro, Uniontech head constantly new high quality materials to enable new applications with a great opportunity for your industry and mechanical properties still unexplored in 3D printing today.

Unlike other manufacturers of SLA systems, Uniontech adopts an open system policy in the use of materials. So you can choose the most suitable material for your application.


A RANGE FOR ALL NEEDS

Thanks to Pilot SD and RSPro line, Uniontech offers a complete range for all production requirements in terms of quality and build size. From the smallest Pilot SD to the maxi RSPro 800 with working area of 800 x 800 mm.

My Image

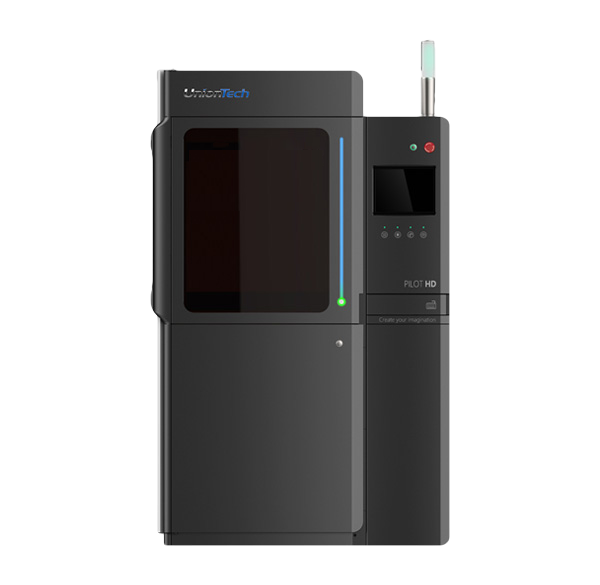

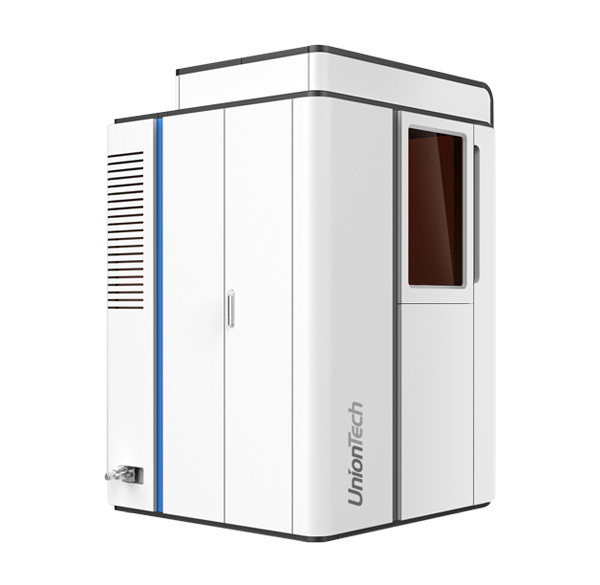

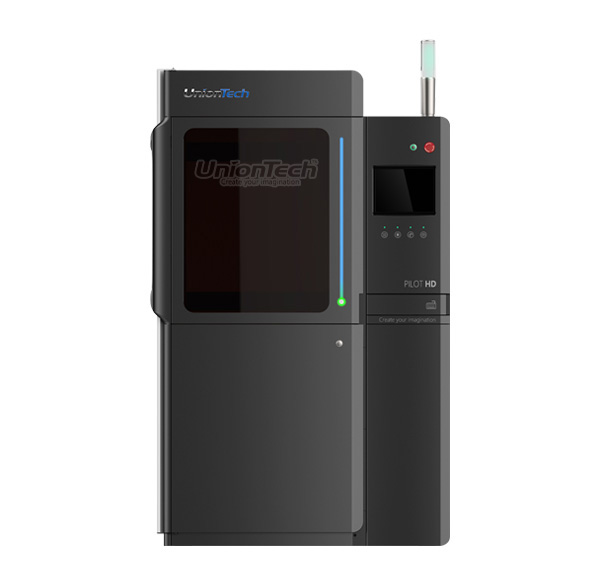

Pilot SD

My Image

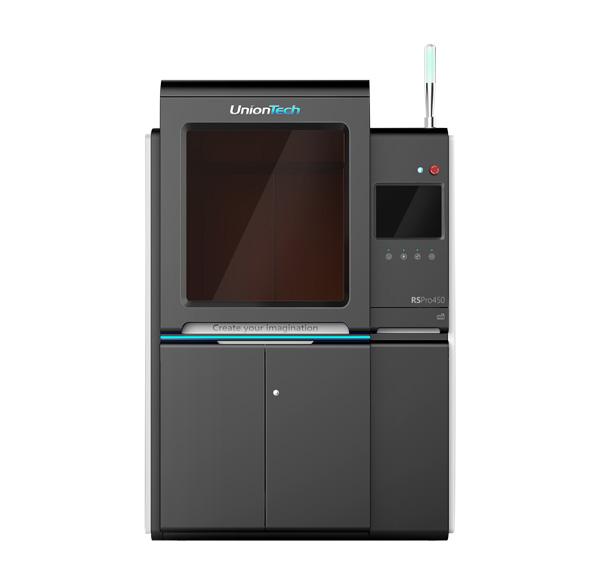

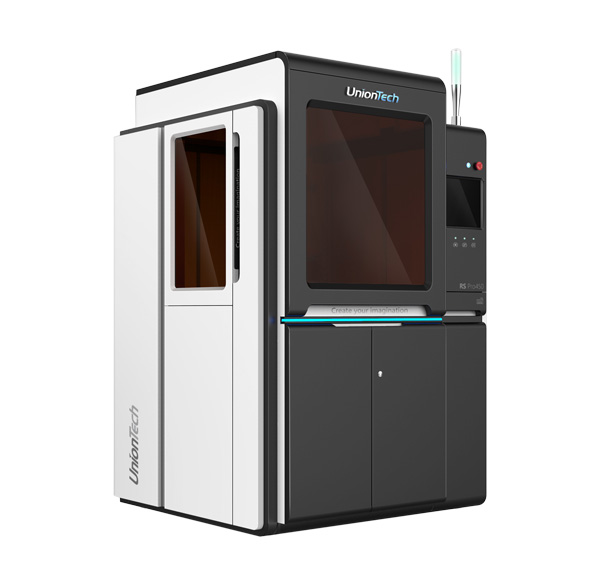

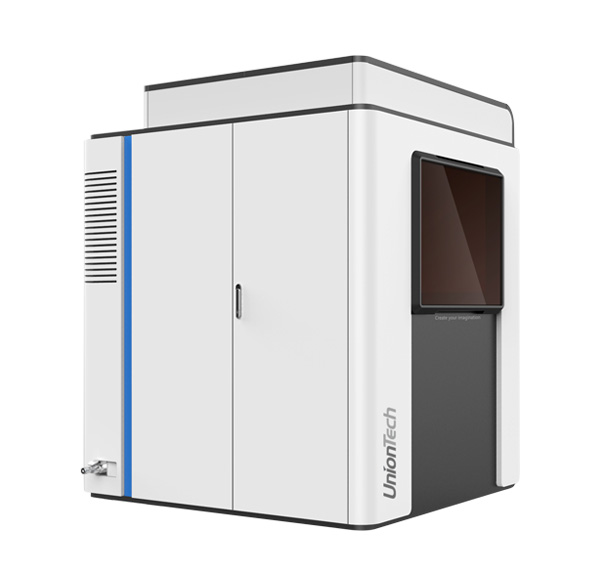

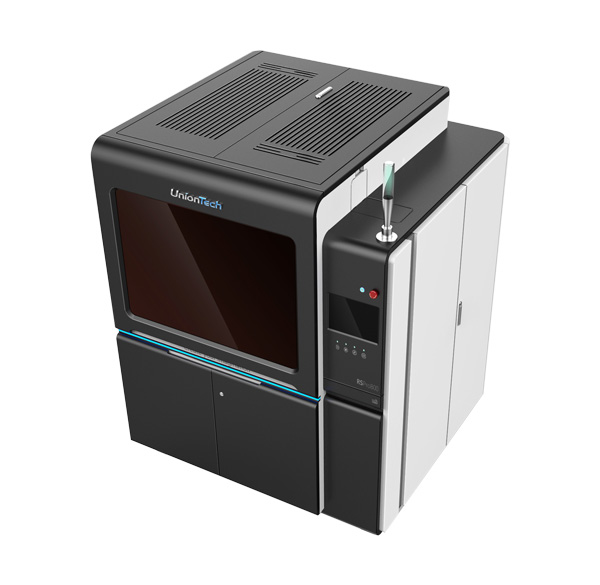

Pilot 450

My Image

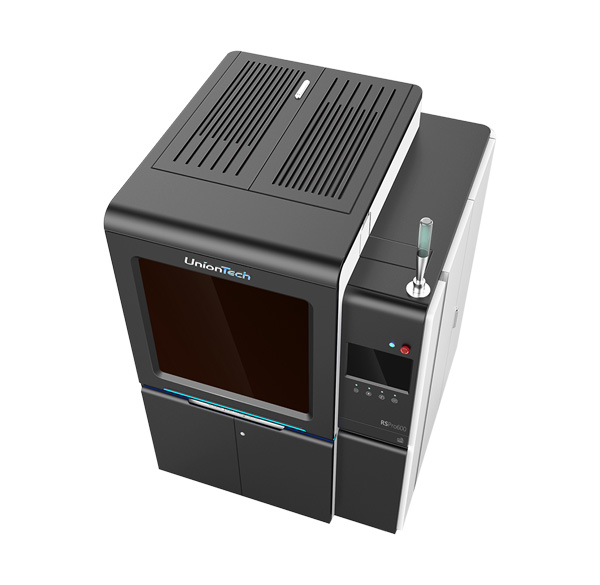

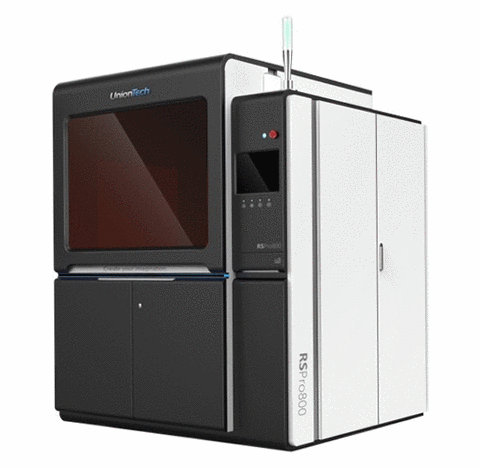

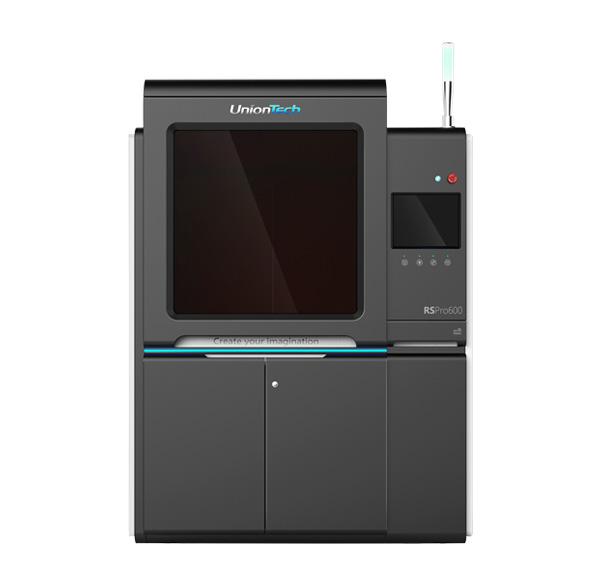

RSPro 600

My Image

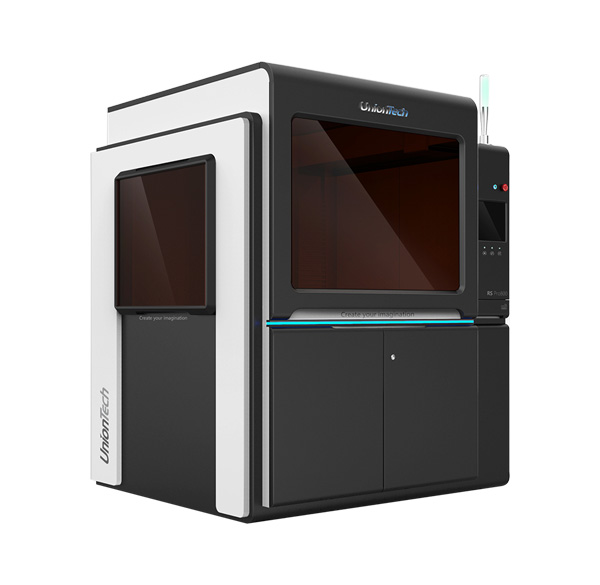

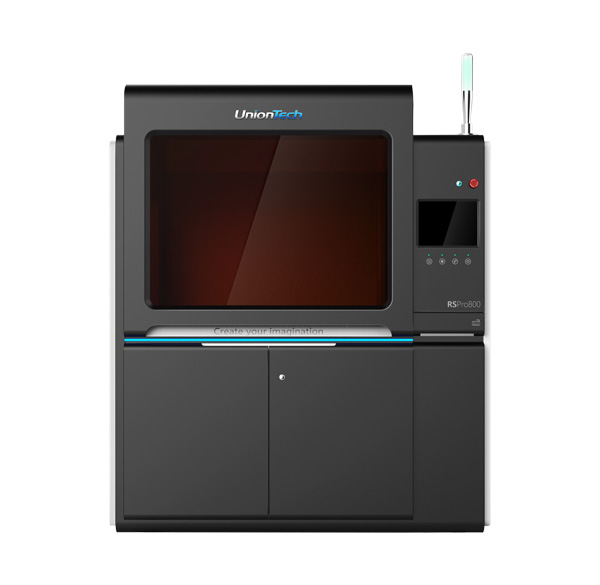

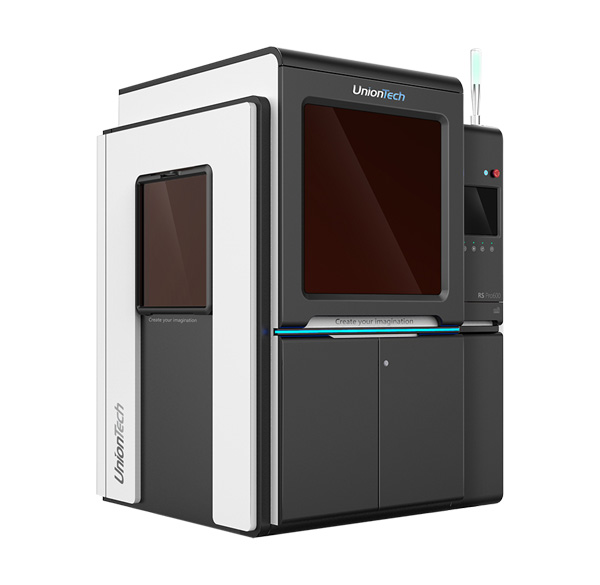

RSPro 800


Pilot SD

Pilot SD represents the ideal solution for the creation of small and medium-size stereolithography models. With a working area of 250 x 250 mm and a low operating cost it is particularly suitable for the realization of complex, detailed models and with high surface quality deman


Pilot SD is designed for the production of high surface quality parts.

Technical Specifications

System Size (LxWxH)

1.105 x 1.118 x 1.965 mm


Weight

1.000 Kg


Power Requirements

220-240 VAC, 20 A, 50 Hz Single Phase


Operating System

Windows 10


Network

Ethernet, IEEE 802.3 - TCP/IP & NFS


Part Preparation

Magics of Materialise


Input Data Format

.STL


Maximum part size

250 x 250 x 250 mm


Maximum Part Weight

17.5 Kg


Layer thickness

50 - 250 µm


Laser

Solid State Frequency Tripled NdYVO4


Laser Wavelength

355 mm


Laser Power

300 mW @ VAT


Beam Size

Small Beam - 0.06/0.08 mm or Large Beam - 0.12/0.20 mm Optional


Scanning Speed

6-12 m/sec


Laser Warranty

10.000 Hrs or 12 months


Operating Temperature

22.0 - 26.0 °C


Relative Humidity

< 40% Non Condensing


System Warranty

One Year


Technical Specifications

System Size (LxWxH)

1.350 x 1.379 x 2.289 mm


Weight

1.395 Kg


Power Requirements

220-240 VAC, 20 A, 50 Hz Single Phase


Operating System

Windows 10


Network

Ethernet, IEEE 802.3 - TCP/IP & NFS


Part Preparation

Magics of Materialise


Input Data Format

.STL


Maximum part size

450 x 450 x 400 mm


Maximum Part Weight

50.0 Kg


Layer thickness

50 - 250 µm


Laser

Solid State Frequency Tripled NdYVO4


Laser Wavelength

355 mm


Laser Power

800 mW @ Head - Typ. 300 mW @ VAT


Beam Size

0.08/0.12 mm


Scanning Speed

6-12 m/sec


Laser Warranty

10.000 Hrs or 12 months


Operating Temperature

22.0 - 26.0 °C


Relative Humidity

< 40% Non Condensing


System Warranty

One Year

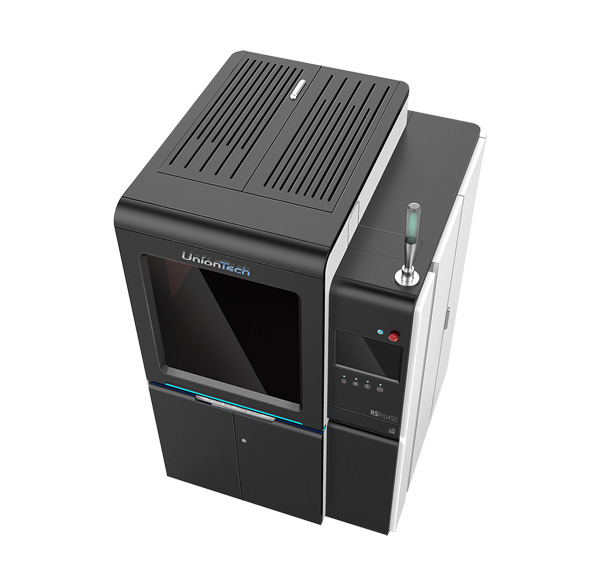

The RSPro series enables printing of large format models up to 800 x 800 mm. With three different models all production requirements for different application needs are answered by a single range of systems.


RSPro is designed for the production of high-volume parts.

Technical Specifications

System Size (LxWxH)

1.621 x 1.617 x 2.227 mm


Weight

2.020 Kg


Power Requirements

220-240 VAC, 20 A, 50 Hz Single Phase


Operating System

Windows 10


Network

Ethernet, IEEE 802.3 - TCP/IP & NFS


Part Preparation

Magics of Materialise


Input Data Format

.STL


Maximum part size (XYZ)

600 x 600 x 500 mm Fulll VAT


Maximum Part Weight

100.0 Kg


Layer thickness

50 - 250 µm


Laser

Solid State Frequency Tripled NdYVO4


Laser Wavelength

355 mm


Laser Power

800 mW @ Head - Typ. 300 mW @ VAT


Beam Size

0.12/0.20 mm


Scanning Speed

6-12 m/sec


Laser Warranty

10.000 Hrs or 12 months


Operating Temperature

22.0 - 26.0 °C


Relative Humidity

< 40% Non Condensing


System Warranty

One Year


Technical Specifications

System Size (LxWxH)

1.819 x 1.616 x 2.287 mm


Weight

2.180 Kg


Power Requirements

220-240 VAC, 20 A, 50 Hz Single Phase


Operating System

Windows 10


Network

Ethernet, IEEE 802.3 - TCP/IP & NFS


Part Preparation

Magics of Materialise


Input Data Format

.STL


Maximum part size

800 x 800 x 550 mm Full VAT


Maximum Part Weight

150.0 Kg


Layer thickness

70 - 250 µm


Laser

Solid State Frequency Tripled NdYVO4


Laser Wavelength

355 mm


Laser Power

800 mW @ Head - Typ. 300 mW @ VAT


Beam Size

0.12/0.20 mm


Scanning Speed

6-15 m/sec


Laser Warranty

10.000 Hrs or 12 months


Operating Temperature

22.0 - 26.0 °C


Relative Humidity

< 40% Non Condensing


System Warranty

One Year
